| 品牌 | Sangmei | 型号 | NN1-05S12S |
| 封装 | SIP | 批号 | 1011 |
| 类型 | 电源模块 | 输入电压 | DC05（V） |
| 输出电压 | DC12（V） | 功率 | 1（W） |

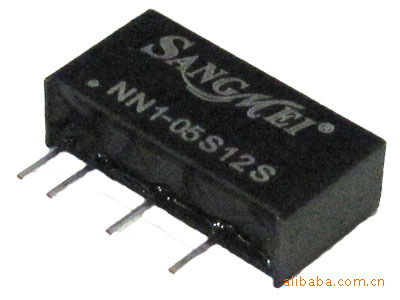

■直流转直流，DC05V转DC12V，1W隔离非稳压输出电源模块。实物参见下图：
■ Typical performance/典型性能
◎ 特点：定电压输入，隔离非稳压输出，1W功率 Characteristics:Fixed Input,isolation, Unregulated Output,1W◎ 隔离电压 Isolation voltage：1000VDC/3000VDC◎ 效率Efficiency ：高达(up to) 80%◎ 工作环境温度 Working temperature ：-40℃～+85℃◎ MTBF≥350万小时(3500000Hrs)◎ 符合RoHS指令 In line with RoHS codes◎ 线性调节率 (输入电压变化±1%时)±1.2% Line regulation (once input change ±1%) ±1.2%◎负载调节率(10%-100%满载) 15% Load regulation (10%-100% full load) 15%◎ 纹波/噪声(20MHz带宽)＜75mVp-p Ripple and noise (20MHz Band width) <75mVp-p■ Typical product tabulates / 典型产品列表
■ Mechanical Data / 封装尺寸表
| 封装代号Package Code | L × W × H | L × W × H |
| A (单路输出 single output) | 11.50 × 6.00 × 10.00mm | 0.45 × 0.24 × 0.39inch |
| B (单路输出 single output) | 19.50 × 6.00 × 10.00mm | 0.77 × 0.24 × 0.39inch |
| C ( 两路正负输出 dual output ) | 19.50 × 6.00 × 10.00mm | 0.77 × 0.24 × 0.39inch |
| D( 两路隔离输出 dual output isolated ) | 19.50 × 6.00 × 10.00mm | 0.77 × 0.24 × 0.39inch |
| E( 单路输出3000VDC隔离 single output 3000VDC isolated) | 19.50 × 6.00 × 10.00mm | 0.77 × 0.24 × 0.39inch |
| F( 两路正负输出3000VDC隔离 dual output 3000VDC isolated) | 19.50 × 6.00 × 10.00mm | 0.77 × 0.24 × 0.39inch |
■ Dimensional Drawing/ 封装尺寸图
| ■ 封装尺寸A：单路输出 (single route output)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | GND | Vin | -Vo | +Vo | | | | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
| ■ 封装尺寸B：单路输出 (single route output)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | Vin | GND | | -Vo | | +Vo | | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
| ■ 封装尺寸C：正负两路输出 (Duel route Positlve and negative out)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | Vin | GND | | -Vo | COM | +Vo | | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
| ■ 封装尺寸D：两路隔离输出 (Duel route isolation output)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | Vin | GND | | -Vo1 | +Vo1 | -Vo2 | +Vo2 | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
| ■ 封装尺寸E：单路输出3000VDC隔离 ( Single route output 3000VDC)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | Vin | GND | | | -Vo | | +Vo | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
| ■ 封装尺寸F：两路正负输出3000VDC 隔离(Duel route Posivlve and negative out 3000VD)SIP |
| 管脚代码 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | | 功能(Usage) | Vin | GND | | | -Vo | COM | +Vo | ▲注：所有单位尺寸为mm，所有相邻端子间距为2.54mm，所有端子直径为0.65mm
▲Note:Aaa unit is mm,all neighboring pin distance is 2.54mm,all ping diameter is 0.65mm. |
|
